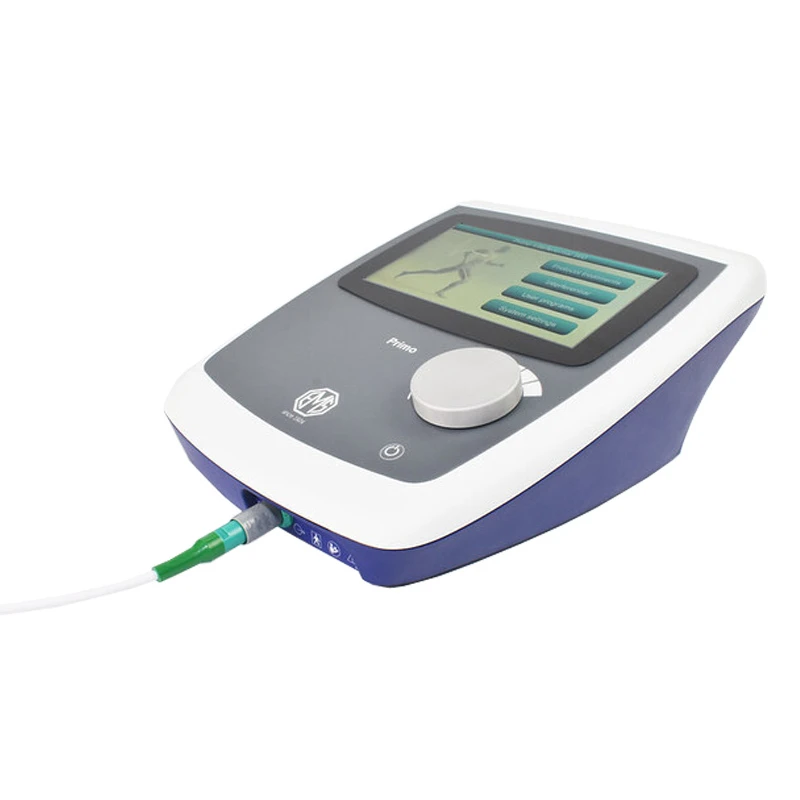

Primo Interferential 960 Therapy Unit

The Primo Interferential 960 Therapy Unit uses a mid-frequency electrical signal to treat muscular spasms and strains, which makes it particularly effective in treating acute injuries, especially in sport. It is used to relieve pain, stimulate muscles, and increase local blood flow.

What Is Included?

Your purchase of this interferential therapy unit will include:

• 1 x Primo 960 interferential therapy unit
• 1 x Two pole patient lead
• 1 x Four pole patient lead
• 4 x Medium rubber electrodes (80 x 60mm)
• 4 x Medium sponge covers
• 4 x Electrode connection cables (blue and yellow)
• 2 x Stretch bandages (1200 x 75mm)

What Is Interferential Therapy?

Interferential therapy applies medium frequency currents in a 2 or 4 pole configuration to produce low-frequency stimulation. Normal human skin has relatively high impedance at these frequencies, so traditionally a larger voltage had to be used to achieve the desired current, resulting in a more uncomfortable treatment for the patient. Interferential therapy overcomes the problem of skin impedance by increasing the frequency of the signal from 50Hz to around 4000Hz, and since skin impedance is much lower at this frequency, a much lower voltage signal can be used to acheive the same current, significantly reducing discomfort.

This frequency is, however, much too high to produce a stimulation effect in biological material (it should be between 0.1Hz and 250Hz). To produce the desired effect, two medium frequency signals are used, such as 4000Hz and 3900Hz. These two frequencies ‘interfere’ with one another and it is the difference between these two frequencies (amplitude modulation frequency) which produced the stimulation effect required for interferetial therapy.

New, More Reliable ODU Connector

Recently, Primo have updated their range to use ODU connectors, which are far more reliable than the old DIN connectors previously used in their machines. ODU connectors improve the connectivity of various transducers and stim cables, ensuring your machine operates to its potential without the threat of outages or stuttering faults.

What Are the Features of the Primo Interferential 960 Therapy Unit?

This machine comes equipped with a suite of features which allow you to effectively carry out interferential therapy:

• Touch screen technology – accompanies an intuitive user interface
• Three carrier frequencies – 2kHz, 4kHz and 8kHz
• Variable modes – 0mA to 100mA peak constant or 0V to 70/140V peak constant voltage
• Two independent output channels – allow two different treatments
• Can be integrated into diverse care – operates in conjunction with EMS vacuum unit if required
• Easy wipe design – reduces the risk of cross-infection
• Mains powered as standard – for reliable device performance (optional battery also available)

What Treatment Protocols Are Available for Primo Interferential 960 Therapy Unit?

This device comes pre-programmed protocols for the treatment of these conditions:

• Pain relief
• Oedema
• Stimulate local blood flow
• OA Knee
• Chronic low back pain
• Acute low back pain
• Fibromyalgia
• Trigger points
• Post operative knee pain
• Fracture healing
• Stress incontinence
• Urge incontinence
• Constipation (children)

Seamless Portable Charging Option

A must have accessory for your EMS machine is a portable charger. Allowing you to maintain full charge on ultrasound and stimulation modes respectively for up to 3 hours, the Primo Lightweight 60W EMS Ultrasound Machine Battery ensures your machine stays fully charged.

What Are the Specifications of the Primo Therasonic 360 Therapeutic Ultrasound Machine?

• Weight: 1.5 kg
• Dimensions: 108 × 237 × 333mm
• Power Supply: mains or battery
• Power Input: 18V, 3.33A external PSU
• Battery Pack (optional) Internal Rechargeable (NiMh)
• Classification (EN60601-1) Class 1, Type BF
• Fuse Internal T3.15A
