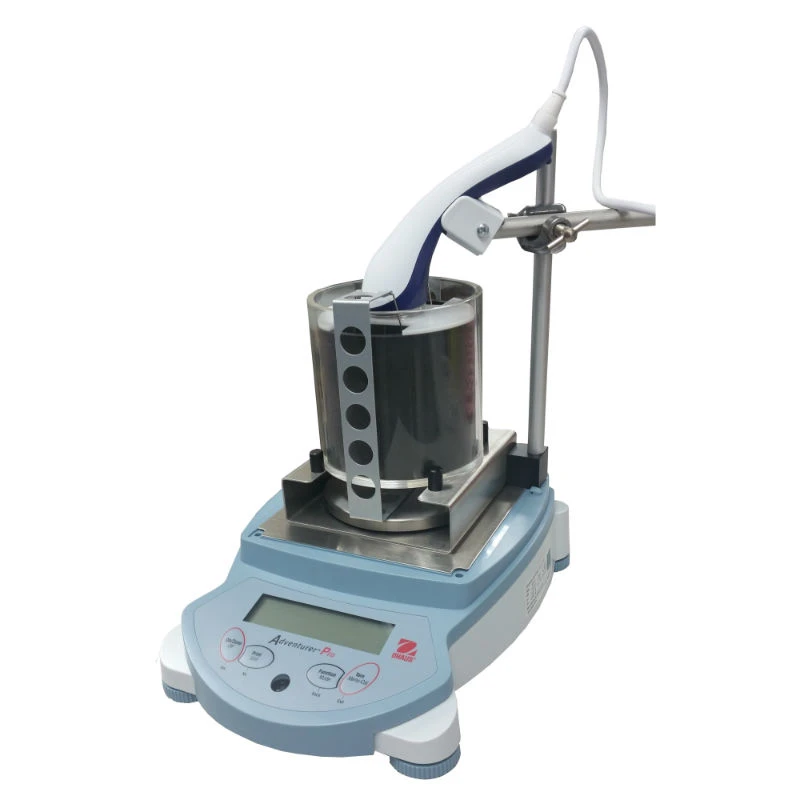

Precision Ultrasound Balance

Developed by technicians, the Precision Ultrasound Balance has been built to provide precise and accurate, yet easy to read, measurement and calibration of ultrasound output. It is easy to assemble and use, making it ideal for busy environments.

What’s Included?

• 1 x Precision ultrasound balance
• 1 x Carrying case
• 1 x Certificate of conformity (optional)
• 1 x RS232 interface

What Is the Purpose of This Ultrasound Balance?

This balance can be used to accurately measure the output of ultrasound devices. This makes it the perfect tool for calibrating therapeutic ultrasound equipment, such as the EMS Primo Combination 860.

What Are the Features of the Precision Ultrasound Balance?

This balance is equipped with features to maximise its accuracy and precision as a calibration tool:

• Accuracy of output measurement – allows you to monitor your ultrasound device
• Repeatable measurements – help you to achieve laboratory standards of accuracy
• Easy to assemble and use – for the most reliable experience possible
• Compatible design – works for EMS and other ultrasound devices
• RS232 interface – offers compatibility with data systems

What Are the Specifications of the Precision Ultrasound Balance?

• Accuracy (scale factor): 10%
• Resolution: 0.02 watts
• Linearity: <0.1 watts
• Stability: <0.1 watts/10 minutes
• Zero drift: <0.1 watts/hour
• Warm up time: <10 minutes
• Full scale: 30 watts
• Power input: 100mA, 240 V AC
• Dimensions: 222 x 300 x 300mm
• Weight: 14kg
• Water capacity: 1 litre
• Recommended frequency range: 0.8 to 3.5MHz
