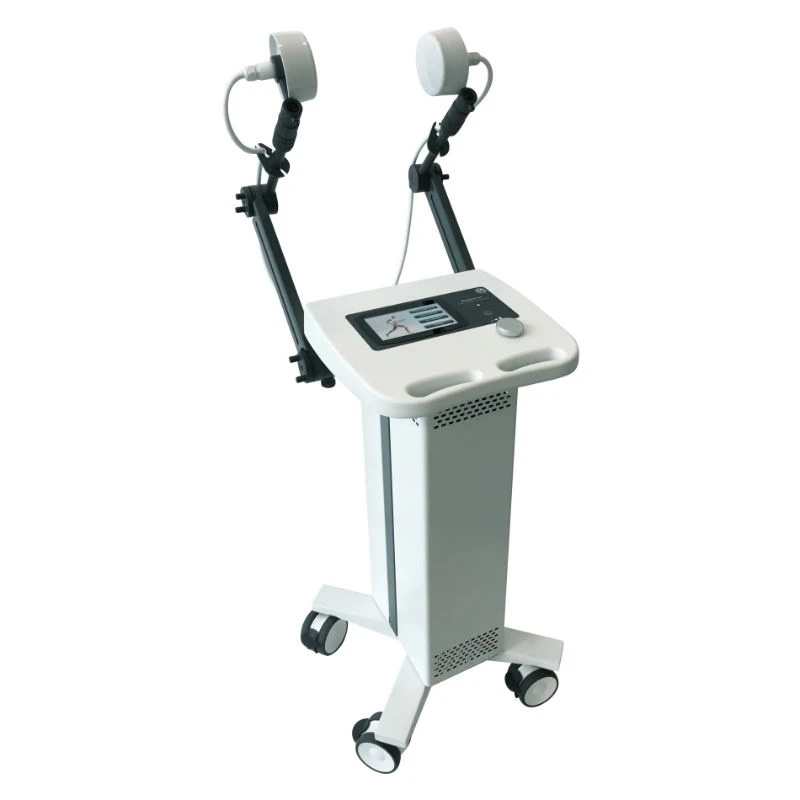

Megapulse Senior 265 Pulsed and Continuous Shortwave Unit

The Megapulse Senior 265 Pulsed and Continuous Shortwave Unit carries out shortwave therapy in a stylish, compact and intuitive unit. It is capable of carrying out pulsed and continuous therapy with a number of different settings.

What Are the Features of the Megapulse Senior 265 Pulsed and Continuous Shortwave Unit?

• Continuous and pulsed shortwave – both possible from the same unit, with maximum power outputs of 400W and 1000W respectively
• Back-lit touch screen display – offers clear clear operational information
• Intuitive user interface – allows for fast set up and easy operation
• Ten programmable memory functions – aid in therapy programmes
• Optional treatment protocols – are based on clinically proven results
• Distinctive ergonomic design – includes robust, lockable castors
• Wide range of pulse widths – available from 20 to 400 microseconds
• Wide range of pulse frequencies – from 5 to 800 pulses per second
• Up to 30 minutes treatment time – for the widest range of therapy
• Choice of output modes – continuous or pulsed 1 in 3, 2 in 3 and 3 in 3
• Versatile design – includes durable electrode arms and 100mm capacitive electrodes easily adapted to different patients
• Output tester also supplied – to maintain correct calibration without additional cost

What is Shortwave Therapy?

Shortwave therapy is the application of electromagnetic radiation between 2MHz and 100MHz, which converts to heat in the body by induction with circulation of currents in the tissue. While conventional shortwave therapy provides this radiation continuously, pulsed shortwave therapy generally provides in in pulses of between 20 and 400 microseconds (millionths of a second) with a pulse frequency between 5Hz and 800Hz. This therapy has been found to hold a number of benefits, particularly in early recovery.

Which Frequencies Should Be Used?

To avoid equipment such as shortwave therapy units interfering with radio communications, certain frequency ranges are designated by international agreement as ISM (Industrial, Scientific and Medical) bands. Generally, shortwave therapy equipment uses the band centred on 27.12 MHz.

Specifications of the Megapulse Senior 265 Pulsed and Continuous Shortwave Unit:

• Weight: 38kg
• Dimensions: 410 × 410 × 940mm
• Mains Supply: 100 to 240 Vac, 1kVA max, 50/60Hz
• Frequency: 27.12MHz
• Output Power: 400W maximum in continuous mode 1000W maximum peak power in pulsed mode
• Output Modes: continuous, pulsed 1 in 3, pulsed 2 in 3 and pulsed 3 in 3
• Classification: class 1, type BF (EN 60601-1)
• Pulse Width: 20 to 400µs
• Pulse Frequency: 5MHz to 800MHz
• Timer: 0 to 30 minutes, with termination of output and alarm at end of treatment
• Tuning: Automatic
